Sola E-MZA00W70 - 70 Watt - Metal Halide Ballast

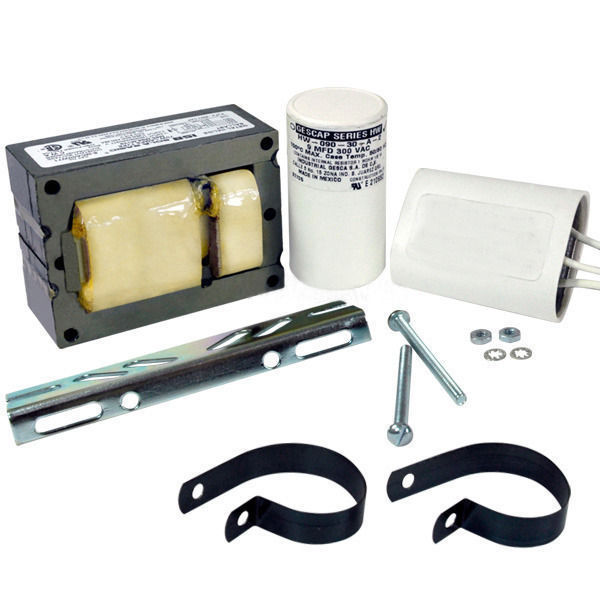

ANSI M98 - 4 Tap - Power Factor 90% - Max. Temp. Rating 221 Deg. F - Includes Dry Capacitor, Ignitor, and Bracket Kit

Alternate Products
Details
Description
Driving 70-watt lamps, the Sola E-MZA00W70 metal halide ballast features a 4-tap voltage input for compatibility from 120 to 277 volts. This magnetic HID ballast boasts a high power factor of 90 percent, ensuring maximum efficiency. A temperature rating of 221-degrees Fahrenheit makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry capacitor, ignitor, and bracket kit.
Brochures & Spec Sheets
Product Attributes
Brand | Sola |
---|---|
MPN (Part No.) | E-MZA00W70 |
Lighting Technology | Metal Halide |
ANSI Code | M98 |
Wattage | 70 Watt |
Voltage | 120/208/240/277 |
Ratings and Certifications | CSA/Indoor/UL |
Ballast Type | Core and Coil |
Mounting | Hardware Included |
Operates | MH70 |
Start Temp. (Min) | -20 Deg. F |
---|---|
Start Temp. (Max) | 221 Deg. F |
Power Factor | 90% |
Start Method | Pulse Start |
Length | 3.93 in. |
Height | 2.8 in. |
Width | 3.6 in. |
Weight | 5.5 lb. |
Warranty | 3-Year Limited |
