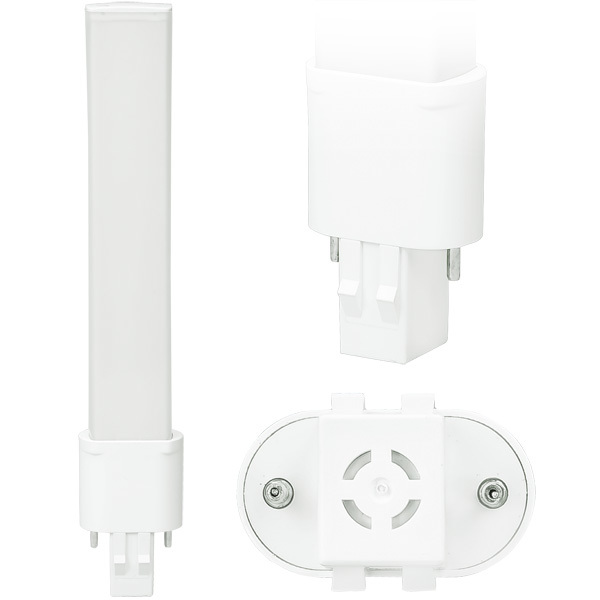

600 Lumens - 6 Watt - 5000 Kelvin - LED PL Lamp
Replaces 13W CFL - 2 Pin GX23 Base - Ballast Bypass or Plug and Play - 120-277 Volt - PLT-20189
Alternate Products
Details
Description
- Suitable for enclosed fixtures, sconces, and recessed downlights
- Works with most magnetic ballasts
- Safe to install in damp locations
- 2 Pin GX23 base
This PLT-20189 LED PL retrofit saves time and money by either operating with existing ballast or bypassing the ballast entirely making it an ideal choice for use in offices and hospitals.
Type A+B - Hybrid: Type A+B hybrid types are the most versatile tubes. They reduce installation issues because you can start by using them as plug and play with a compatible ballast, then switch to ballast bypass operation when the ballast reaches its end of life.
Brochures & Spec Sheets
PLT-20189 Spec Sheet
Product Attributes
| Brand | PLT |
|---|---|
| MPN (Part No.) | PLT-20189 |
| UPC | 899645001943 |
| Lighting Technology | LED |
| Color | Daylight White |
| Color Temperature | 5000 Kelvin |
| Life Hours | 50,000 |
| Wattage | 6 Watt |
| LPW | 100 |
| Lumens | 600 |
| Voltage | 120/208/240/277 |
| Ratings and Certifications | Damp Location/ETL |
|---|---|
| Base Type | GX23 |
| CFL Equivalent | 13 Watt |
| Burn Position | Horizontal |
| Operation | Type A/B Hybrid |
| Length | 7.1 in. |
| Width | 1.5 in. |
| Diameter | 1.5 in. |
| Warranty | 5-Year Limited |
| Case Quantity | 20 |
