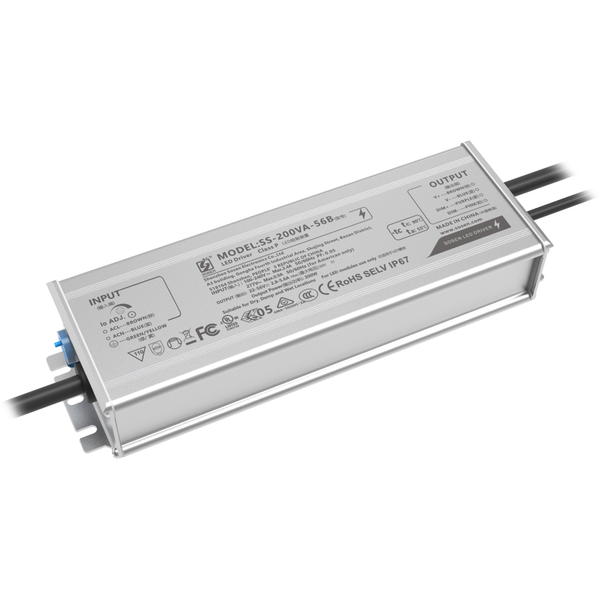

LED Driver - Dimmable - 200 Watt - 2800-5600 mA Output
120-277V Input - 22-56 Volt Output - Works With Constant Current Products Only - Sosen SS-200VA-56B
Details
Description
- Output: 2800-5600 mA
- Max. wattage: 200W
- Output voltage: 22-56V
- Starts up in less than a second
- Up to 93% efficiency
- Suitable for hazardous locations
- IP67
- Surge protection: CM: 10kV, DM: 6kV
- Isolated dimming: 1-10V
Extend the lifetime of your LEDs with this 200-Watt LED driver by Sosen. This constant-current driver provides over 120,000 hours of lumen maintenance. With supreme heat, water, and dust protection, it's specifically designed for outdoor use in street and area lights.
Brochures & Spec Sheets
IP Rating Chart
Product Attributes
| Brand | Sosen |
|---|---|
| MPN (Part No.) | SS-200VA-56B |
| UPC | 842821120068 |
| Lighting Technology | LED |
| Dimmable | Yes |
| Dimming Type | 0-10 Volt |
| IP Rating | IP-67 |
| Life Hours | 62,000 |
| Maximum Wattage | 200 Watts |
| Ratings and Certifications | UL/Wet Location |
| Input Voltage | 120/277 |
| Mounting | Side Leads |
| Surge Protection | 6kV |
| Efficiency | up to 93% |
| Power Factor | 0.93 |
|---|---|
| Type | Constant Current |
| Length | 8.7 in. |
| Height | 1.6 in. |
| Width | 2.8 in. |
| Current Type | Adjustable |
| Max Output Current | 5600mA |
| Min Output Current | 2800mA |
| Max Output Voltage | 56 |
| Min Output Voltage | 22 |
| Weight | 2.4 lb. |
| Warranty | 5-Year Limited |
| Case Quantity | 15 |
