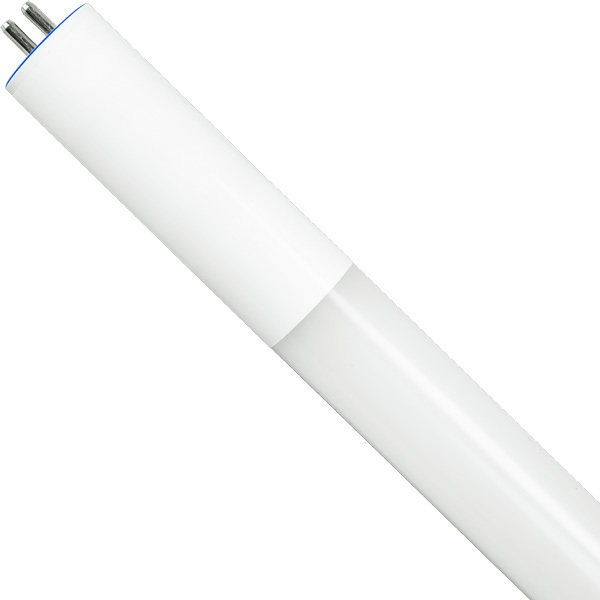

4 ft. LED T5 Tube - 3000 Kelvin - 1800 Lumens - Type B - Operates Without Ballast
F28T5 Replacement - 14.5 Watt- Single-Ended Power - 120-277 Volt - Case of 24 - Green Creative 36954
Alternate Products
-
PLT-90369
4 ft. LED T5 Tube - 3500 Kelvin - 1700 Lumens - Type B - Operates Without Ballast
F28T5 Replacement - 12.5 Watt - Single-Ended or Double-Ended Power - 120-277 Volt - Case of 25 - PLT-90369$14.60 ea.Sold only by the Case of 25 for $364.92 -
PLT-90370
4 ft. LED T5 Tube - 4000 Kelvin - 1800 Lumens - Type B - Operates Without Ballast
F28T5 Replacement - 12.5 Watt - Single-Ended Power or Double-Ended Power - 120-277 Volt - Case of 25 - PLT-90370$14.60 ea.Sold only by the Case of 25 for $364.92 -
PLT-90371
4 ft. LED T5 Tube - 5000 Kelvin - 1800 Lumens - Type B - Operates Without Ballast
F28T5 Replacement - 12.5 Watt - Single-Ended Power or Double-Ended Power - 120-277 Volt - Case of 25 - PLT-90371$14.60 ea.Sold only by the Case of 25 for $364.92
Details
Description
- Replaces 4 ft. 28-Watt fluorescent lamps
- Compatible with non-shunted lampholders
- Excellent efficacy of 121 LPW
- 60,000 LED L70 life hours
- Frosted lens evenly diffuses light
- NSF rated for no contact food zones
- Suitable for use in enclosed fixtures
- UL rated for use in damp locations
- Case of 24
Retrofit your strip lights, fluorescent troffers, and linear high bay fixtures with Green Creative's highly efficient 4 ft. LED T5 tubes. These type b T5 tubes replace 14.5-Watt fluorescent tubes and eliminate the need for a ballast, allowing you to rewire the line directly to the voltage which can help reduce maintenance costs.
With a NSF rating and suitability for use in enclosed fixtures and damp locations, these tube lamps are perfect for use in food storage facilities, restaurant kitchens, and industrial kitchens. The frosted lens and 3000K CCT provides evenly distributed, warm white light, which is perfect for food prep areas.
Get more out of your commercial lighting investment with these long-lasting, energy-efficient Green Creative 36954 LED T5 tubes.
Green Creative BYP LED T5 Tube Spec Sheet
Product Attributes
| Brand | Green Creative |
|---|---|
| MPN (Part No.) | 36954 |
| UPC | 790492369548 |
| DLC Part Number | 14.5T5HE/4F/830/BYP/R |
| Order Code | 14.5T5HE/4F/830/BYP/R |
| Lighting Technology | LED |
| Dimmable | No |
| Bulb Shape | T5 |
| CRI | Standard CRI |
| Color Temperature | 3000 Kelvin |
| LED L70 Life Hours | 60,000 |
| Wattage | 14.5 Watt |
| LPW | 124 |
| Lumens | 1,800 |
| Enclosed Fixture Rated | Yes |
| Voltage | 120/208/240/277 |
|---|---|
| Ratings and Certifications | Damp Location/DLC Standard 5.1/UL |
| Beam Angle | 160 Degree |
| Base Type | Miniature Bi-Pin |
| Fluorescent Equal | 28 Watt |
| Wiring | Single-Ended Wiring |
| Operating Temp | -4 Deg. to 113 Deg. F |
| Operation | Type B Ballast Bypass |
| Lens | Glass |
| Lampholder(s) | Non-shunted |
| Length | 45.75 in. |
| Diameter | 0.88 in. |
| Warranty | 5-Year Limited |
| Case Quantity | 24 |
