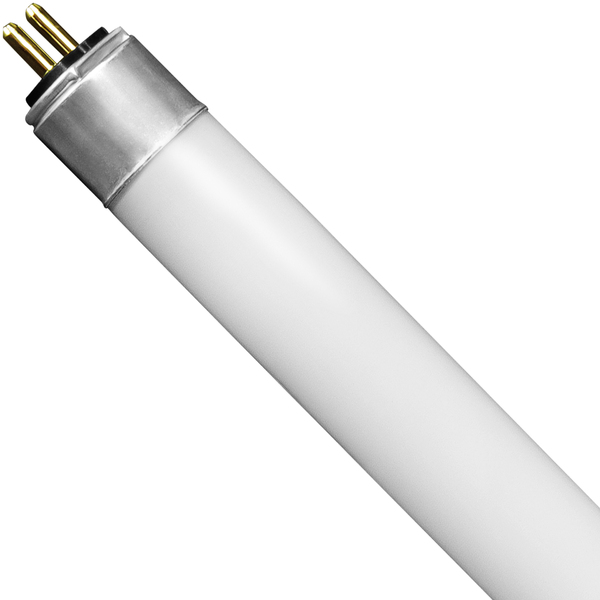

3 ft. LED T5 Tube - 3500 Kelvin - 1500 Lumens - Type B - Operates Without Ballast
F21T5 Replacement - 12 Watt - Single-Ended or Double-Ended Power - 120-277 Volt - Case of 25 - PLT-50347
Alternate Products
-
PLT-50346
3 ft. LED T5 Tube - 3000 Kelvin - 1500 Lumens - Type B - Operates Without Ballast
F21T5 Replacement - 12 Watt - Single-Ended or Double-Ended Power - 120-277 Volt - Case of 25 - PLT-50346$13.42 ea.Sold only by the Case of 25 for $335.42 -
PLT-50349
3 ft. LED T5 Tube - 5000 Kelvin - 1600 Lumens - Type B - Operates Without Ballast
F21T5 Replacement - 12 Watt - Single-Ended or Double-Ended Power - 120-277 Volt - Case of 25 - PLT-50349$14.53 ea.Sold only by the Case of 25 for $363.28 -
PLT-50348
3 ft. LED T5 Tube - 4000 Kelvin - 1600 Lumens - Type B - Operates Without Ballast
F21T5 Replacement - 12 Watt - Single-Ended or Double-Ended Power - 120-277 Volt - Case of 25 - PLT-50348$15.49 ea.Sold only by the Case of 25 for $387.35
Compatible Emergency Drivers
Details
Description
- Neutral White 3500K color
- Type B ballast bypass
- Two compatible emergency drivers: PLTS-20116 and PLTS-20117
- Replacement for conventional T5 High Efficiency fluorescent lamp
- Mini bi-pin base (G5)
- LED L70 at 50,000 hours
- Full glass housing to prevent aging, yellowing, and bending
- Frosted glass diffuses light for even light distribution
- UL rated for use in damp locations
- Case of 25
Transform your office spaces, classrooms, and more with PLT's case of 25 3 ft. LED T5 tubes, featuring a 50,000-hour LED L70 lifespan for long-lasting performance and 1500 Lumens of brightness.
Crafted from quality glass, these T5 retrofits are incredibly resistant to bending and yellowing over time. The frosted lens and neutral white 3500K CCT work in harmony to offer even light distribution, creating a well-lit atmosphere in your lobbies, hallways, or schools.
UL-rated for damp locations and compatible with open fixtures, these LED T5 tubes are versatile in their strip and high bay fixture applications. This mini bi-pin base (G5) tube has Type B ballast bypass operation which requires rewiring directly to line voltage by bypassing or removing the ballast, eliminating your ballast maintenance costs .
Upgrade your lighting setup today with PLT's case of 25 3 ft. LED T5 tubes (PLT-50347) and enjoy superior lighting quality and energy savings.
PLT 3 ft. 12W LED T5 Type B Tube Spec Sheet
Product Attributes
| Brand | PLT |
|---|---|
| MPN (Part No.) | PLT-50347 |
| UPC | 842821129078 |
| Lighting Technology | LED |
| Bulb Shape | T5 |
| CRI | Standard CRI |
| Color Temperature | 3500 Kelvin |
| LED L70 Life Hours | 50,000 |
| Wattage | 12 Watt |
| LPW | 125 |
| Lumens | 1,500 |
| Enclosed Fixture Rated | No |
| Voltage | 120/208/240/277 |
| Ratings and Certifications | Damp Location/UL |
|---|---|
| Beam Angle | 170 Degree |
| Base Type | Miniature Bi-Pin |
| Fluorescent Equal | 21 Watt |
| Wiring | Double-Ended Wiring/Single-Ended Wiring |
| Operating Temp | -4 Deg. to 113 Deg. F |
| Operation | Type B Ballast Bypass |
| Lens | Glass |
| Lampholder(s) | Non-shunted/Shunted |
| Length | 33.4 in. |
| Diameter | 0.77 in. |
| Warranty | 5-Year Limited |
| Case Quantity | 25 |
